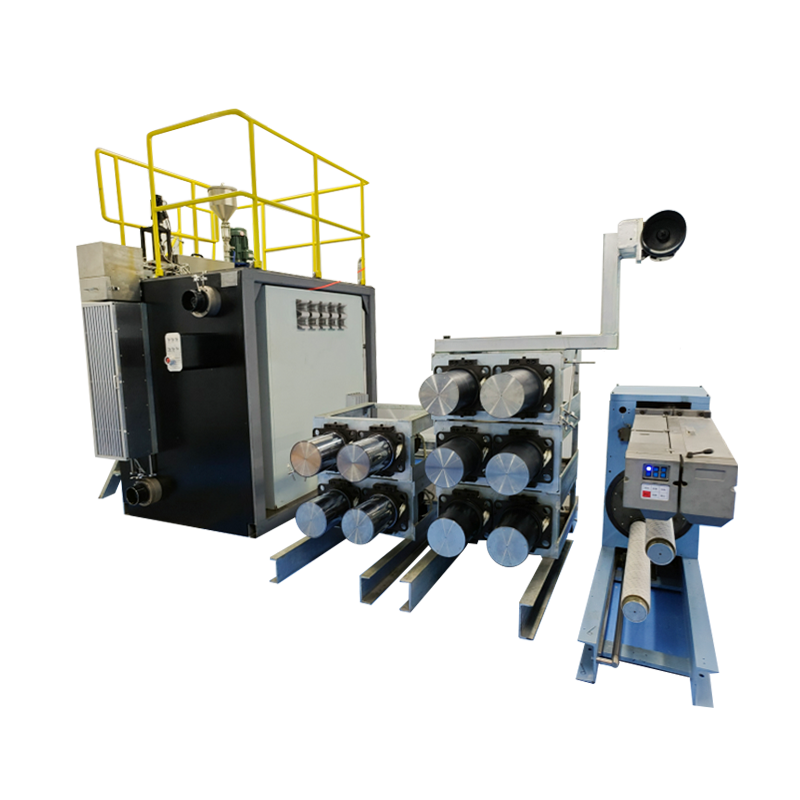

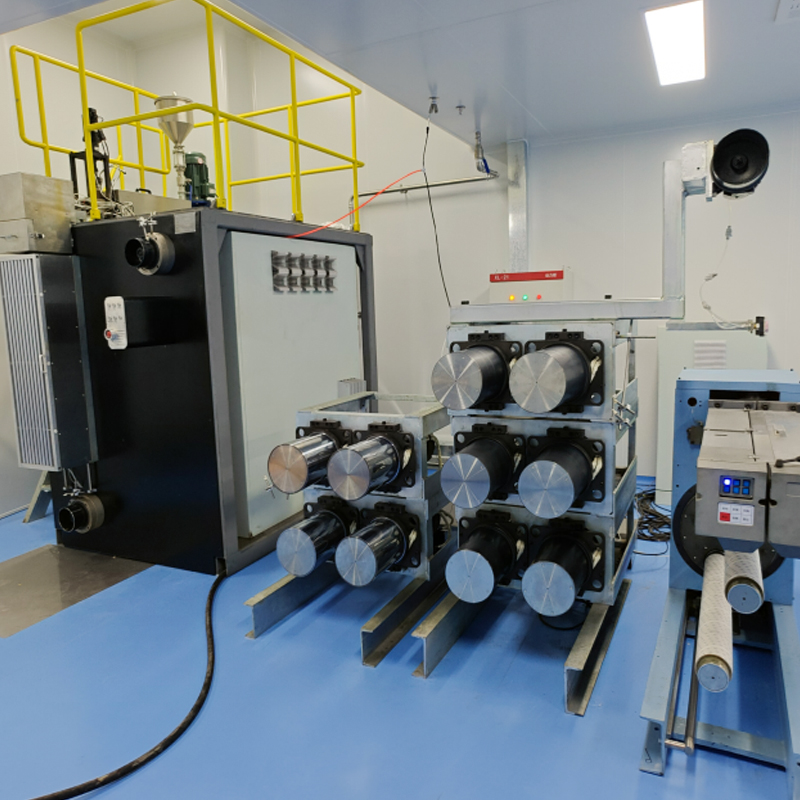

This spinning machine is dedicated for medical PGA absorbable sutures, and can also spin many other materials.
Core Specifications:
·Extrusion & Drawing System: Single-screw extruder with five pairs of hot godets
·Drawing capability: 1-2 stage drawing with flexible combination.
·Quantity of Bobbins: 1-6 bobbins
| PGA Pilot Melt Spinning Machine | |
| Model | SF-08 |
| Material | PGA, PLA, PET、PA6, PA66、PP and other materials |
| Process | FDY |
| Warranty | 1 Year |
| Dimension (L*W*H)mm | 2000mm×3000mm×3800mm |
| Weight | 6000kg |
| No. of Bobbin | 1~6 |
| The Max Winding Speed (Mechanical) | 4500m/min |
| Winding Speed (Working) | 1000m/min~3500m/min |
| Traverse Mode | Traverse Guide |
| Screw | Screw : φ25mm,L/D: 28:1 |
| Quantities of Godet | 3 |
| Drawing Stage | 1-4 stage |
| Diameter of Spinneret | φ85mm |
| Air Quench Chamber Area | 200mm×900mm |
| Combination | 10 Hot Godets(Φ220mm×280mm) |
| Automatic | Auto Mode |
| Heating Method | Steam Jacket, Induction Heating, Non-contact Thermometry |
| Max Temperature | 240℃,±1℃ |
| Power | 150KW |
In the fields of precision medical devices and high-end biomaterials manufacturing, the processing accuracy of polymer materials directly determines the safety and performance of the final products. Our independently developed Multi-functional Flexible Pilot Melt Spinning Machine is specifically engineered for the R&D and small-scale production of medical-grade PGA (Polyglycolic Acid) absorbable sutures, as well as other high-end novel materials.
This is far more than just a high-precision pilot-scale equipment — it serves as a vital bridge connecting cutting-edge laboratory technologies with commercial industrialization. Meanwhile, its "multi-functional and flexible" design allows it to perfectly accommodate the spinning process development of various conventional and high-performance novel materials.
