Core Component of Spinning Machine

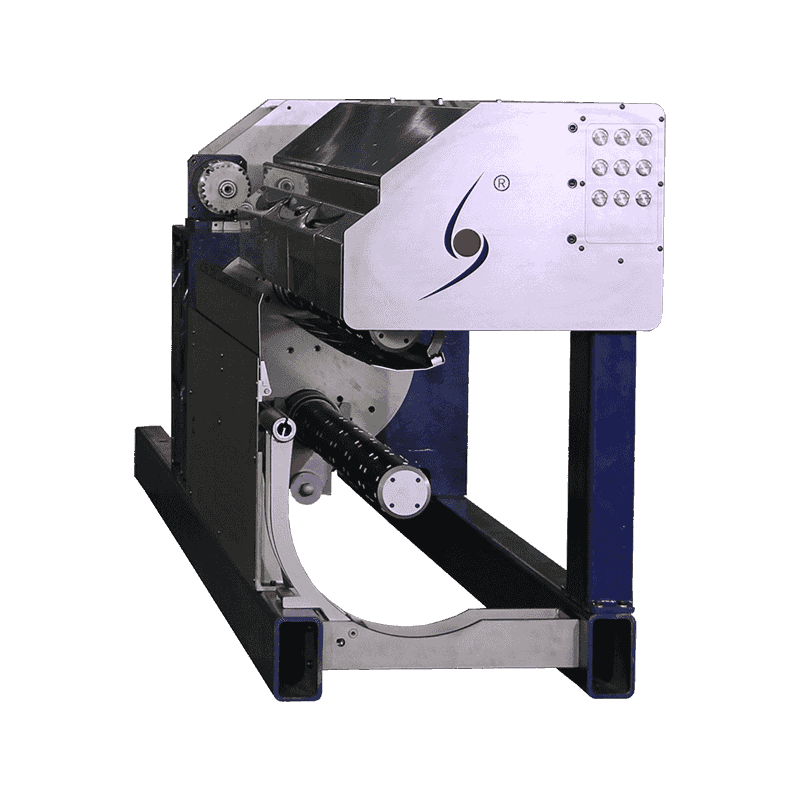

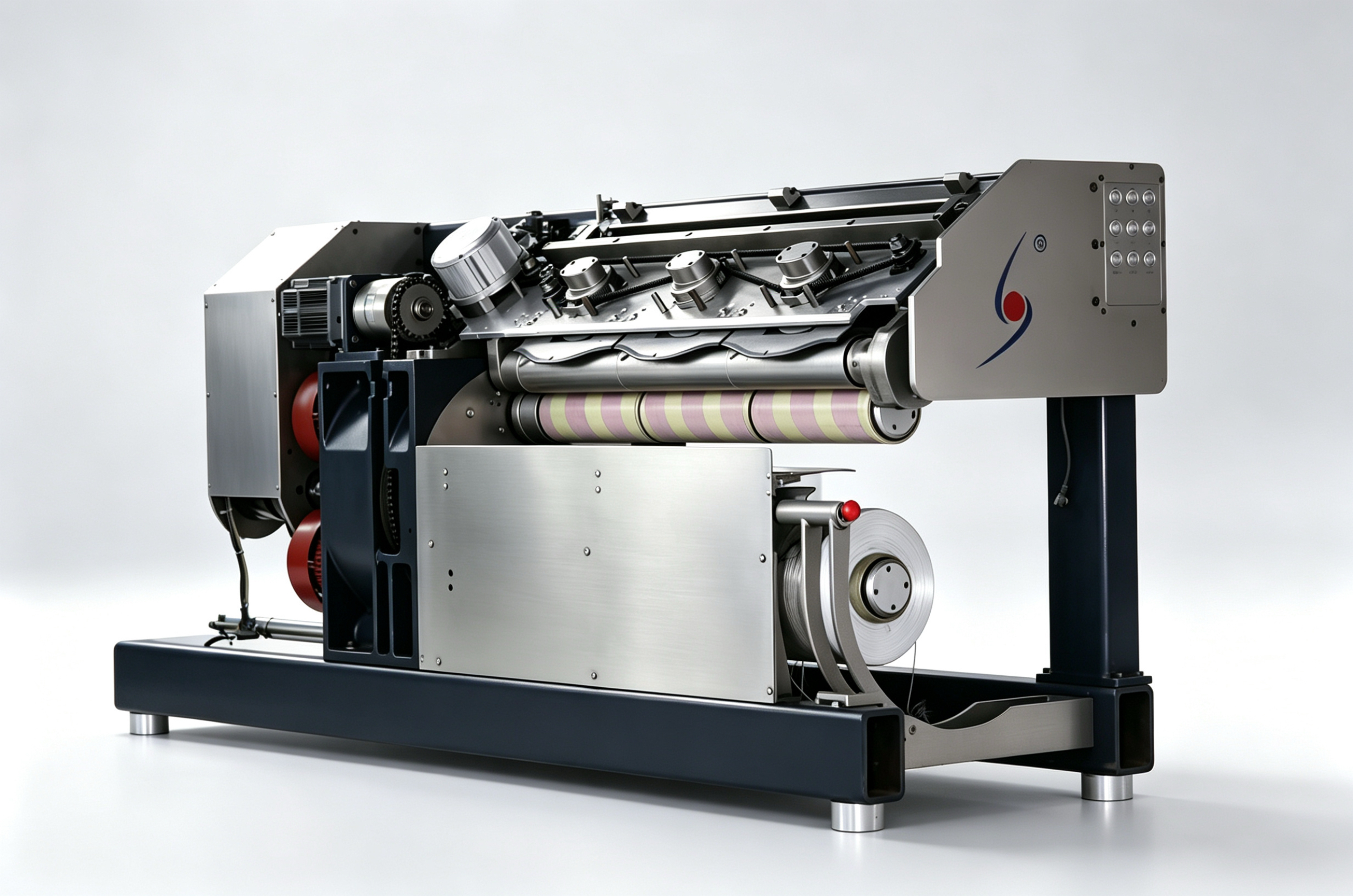

Designed for operational stability and consistent package formation, our take up winders offer a maximum mechanical speed of 7000 m/min. This equipment has been proven through extensive industrial application in both POY 、FDY and industrial yarn production lines. Equipped with advanced electronic control and tension compensation, the system maintains uniform package density from the start to the finish of the winding cycle. This precision minimizes tension variations during downstream unwinding, ensuring stable processing for subsequent textile stages.In terms of automation, the system focuses on a highly reliable automatic doffing cycle. By achieving a consistently high success rate, it ensures uninterrupted production and effectively reduces raw material waste. Our focus remains on providing a robust, dependable solution that supports long-term cost efficiency and stable output for our clients.
| Name | Length amd Diameter | No. of Bobbin | Working Speed(m/min) | Mechanical Speed(m/min) | Traverse Mode |
| Polyester POY Winder | 1200mm*φ108mm | 3200 | 3800 | Traverse Guide | |
| 1500mm*φ108mm | 10 | ||||
| 1800mm*φ108mm | 12 | ||||
| Nylon POY Winder | 1200mm*φ108mm | 8、12 | 4300 | 4500 | Shift Fork |
| Polyester FDY Winder | 1200mm*φ108mm | 12 | 5000 | 5500 | Shift Fork |
| 1600mm*φ108mm | 16 | ||||
| Nylon FDY Winder | 1200mm*φ108mm | 12 | 5000 | 5500 | Shift Fork |
| 1500mm*φ123mm | 12 | ||||
| Nylon Industrial Yarn Winder | 1200mm*φ108mm | 4、6 | 3200 | 4000 | Shift Fork |
| 900mm*φ94mm | 3、4 | ||||
| 1200mm*φ94mm | 4、6 | ||||
| 1600mm*φ108mm | 8 | ||||
| Nylon HMLS Yarn Winder | 1200mm*φ123mm | 4、6 | 6400 | 7000 | Traverse Guide |
| 900mm*φ123mm | 3、4 | ||||
| PP Industrial Yarn Winder | 1200mm*φ94mm | 4、6 | 3000 | 3500 | Traverse Guide |
| 1200mm*φ108mm | 4、6 | ||||
| 900mm*φ94mm | 3、4 | ||||
| BCF Winder | 900mm*φ94mm | 3 | 3000 | 3500 | Traverse Guide |
