Dynamic Melt Mixer: Working Principle, Types & Selection Guide

A dynamic melt mixer is the most effective solution for achieving homogeneous blending of polymer melts in chemical fiber spinning and plastic processing lines. Unlike static alternatives, it uses a motor-driven rotating element to actively shear and distribute the melt, delivering superior mixing uniformity even at high viscosity differentials. For manufacturers integrating masterbatch directly into the spinning process, it eliminates the need for pre-compounding and enables real-time color or additive dosing with consistent results across every spinneret position.



This article covers how a dynamic melt mixer works, its technical specifications, how it compares to static mixers, what applications it serves, and how to select the right configuration for your production requirements.

What Is a Dynamic Melt Mixer and How Does It Work

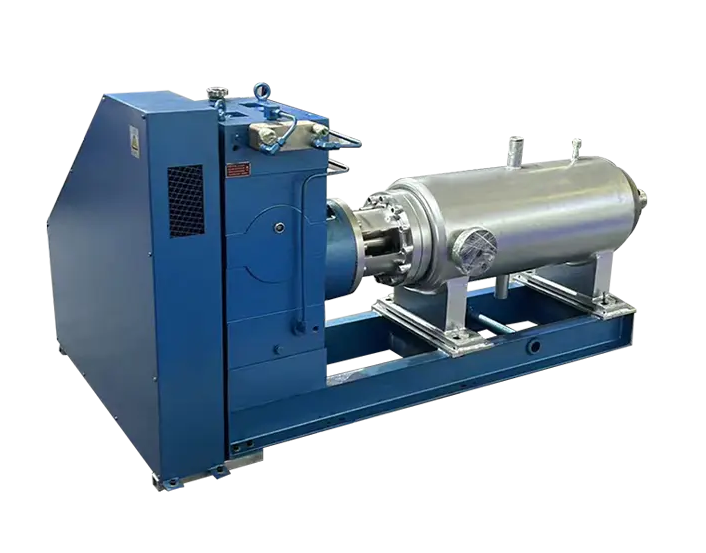

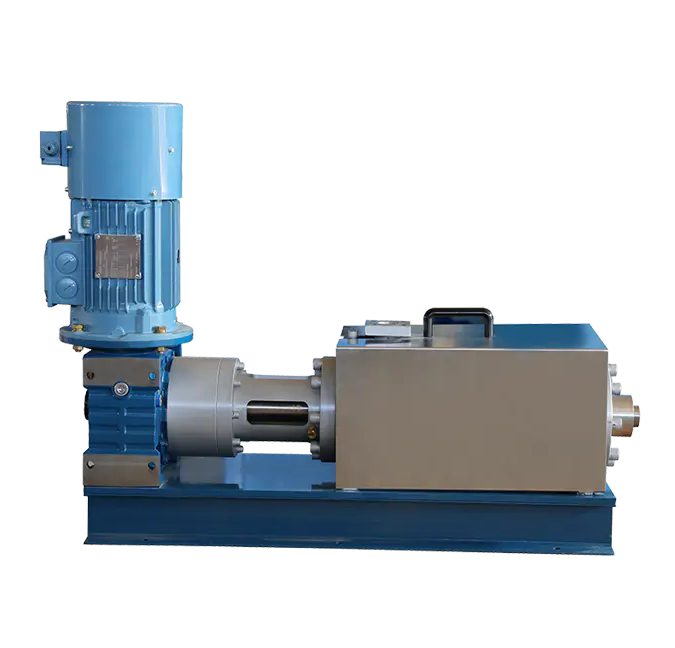

A dynamic melt mixer is a powered inline mixing device installed directly within the polymer melt flow path — typically between the extruder and the spinning pump. It consists of a heated chamber housing a rotating mixing rotor driven by an external motor. As the melt passes through, the rotor generates repeated shear, elongation, and distributive flow patterns that break up concentration gradients and create a molecularly uniform blend.

The core working principle relies on three simultaneous mechanisms:

• Distributive mixing — the rotor divides and recombines melt streams to spread additive or masterbatch particles evenly across the cross-section.
• Dispersive mixing — high shear forces at the rotor-stator gap break down agglomerates of pigment or functional additive into fine, stable dispersions.
• Thermal homogenization — active flow prevents thermal stratification, ensuring uniform melt temperature entering each spinning position.

The rotation speed is independently controllable (typically up to 50 r/min), allowing operators to tune mixing intensity without altering the extruder or metering pump settings. This decoupled control is a critical advantage in direct spinning lines where melt throughput must remain constant.

Technical Specifications and Configuration Options

Dynamic melt mixers are available across a wide range of sizes and pressure ratings to match different production scales. The following table summarizes the standard configuration parameters:

The widest diameter models (250–300 mm) are suited for large-scale POY or FDY lines processing tens of tonnes per day, while compact 25–50 mm units are commonly used in pilot spinning machines or specialty fiber R&D setups. Pressure ratings must align with downstream spinning pump inlet pressure — undersizing this parameter is a common source of seal degradation and unplanned downtime.

Dynamic vs. Static Melt Mixer: Key Differences

Both dynamic and static mixers are used in polymer melt lines, but they serve different needs. Understanding the distinction helps engineers avoid underspecifying equipment for demanding masterbatch addition tasks.

In direct spinning applications where masterbatch concentrate (typically dosed at 2–5% of the main polymer stream) must be blended into a high-viscosity PET or PA melt, a static mixer alone cannot reliably achieve the ΔE color deviation below 0.5 that dye-critical fabrics require. A dynamic melt mixer closes this gap by generating sufficient shear regardless of throughput fluctuations.

Primary Applications in Chemical Fiber and Plastics Processing

The dynamic melt mixer is a versatile piece of equipment used across multiple polymer processing contexts. Its most demanding and high-value application is melt direct spinning with inline masterbatch addition, but it also serves broader industrial uses.

Melt Direct Spinning with Masterbatch Addition

In this setup, a side-stream extruder melts the color or functional masterbatch and injects it into the main PET, PA, or PP melt pipe. The dynamic mixer then homogenizes the combined stream before it reaches the spinning beam. This eliminates chip dyeing or pre-mixed chips, reducing raw material inventory complexity and enabling rapid color changeover — an important advantage when producing short runs of specialty yarns.

Production lines for FDY, POY, and HOY filament yarns all benefit from this approach. Consistent color performance across all spinnerets in a multi-position beam depends entirely on the mixer's ability to maintain uniform concentration from the first to the last spinneret pack.

Functional Fiber Production

Functional additives such as flame retardants, UV stabilizers, antibacterial agents, and IR-absorbing fillers are increasingly incorporated at the spinning stage rather than in a separate compounding step. These often have significant viscosity and density differences from the base polymer, making active mixing essential. A dynamic melt mixer ensures additive dispersion meets the threshold required for consistent functional performance — for instance, uniform TiO2 distribution for controlled fiber luster or consistent antimicrobial agent loading for medical-grade textiles.

Film Extrusion and Ink Processing

Beyond fiber spinning, dynamic melt mixers are used in cast film lines (e.g., BOPP, BOPET) where uniform pigment distribution across the film width is critical for optical quality. Ink formulations with high pigment loadings similarly benefit from the dispersive shear that a dynamic mixer provides, particularly when switching between color batches with minimal flushing waste.

How to Select the Right Dynamic Melt Mixer for Your Line

Choosing a dynamic melt mixer involves matching five key parameters to your process conditions. Oversizing leads to unnecessary mechanical complexity and energy use; undersizing compromises mixing quality and risks seal failure.

1. Throughput capacity: Select a model whose rated capacity aligns with your melt line's maximum production rate. For multi-position spinning beams, account for the total melt flow from all spinneret positions, not just one.
2. Operating pressure: Measure the melt pressure at the mixer inlet under normal and peak production conditions. Choose a pressure rating at least 20% above your peak operating pressure to ensure seal integrity over years of continuous operation.
3. Polymer type and viscosity: High-viscosity melts (e.g., high-IV PET for industrial yarns) require larger rotor diameters and higher drive power. Low-viscosity melts such as nylon 6 at processing temperature may allow smaller configurations.
4. Heating method: Electrical heating is simpler to install and suitable for most standard fiber lines. Oil heating provides more uniform temperature distribution along the mixer body and is preferred when processing heat-sensitive polymers or when precise melt temperature control (±1°C or better) is required.
5. Masterbatch addition ratio: Higher addition ratios (above 5%) or masterbatches with large viscosity differences from the base polymer require more intensive mixing — favor larger diameter models and higher rotational speed capability.

A useful selection checkpoint: if your masterbatch addition stream is less than 3% of main melt flow and the polymer pair has similar viscosity, a mid-range diameter unit at moderate rotation speed will typically suffice. If you are dosing functional additives above 5% or blending incompatible polymer grades, select the next larger diameter class and confirm the drive power can sustain continuous duty at 70–80% of maximum torque.

Installation, Operation, and Maintenance Considerations

Proper installation and routine maintenance directly determine the service life and mixing performance of a dynamic melt mixer. The following practices apply across most industrial polymer melt lines:

Installation Best Practices

• Position the mixer as close as possible to the masterbatch injection point to minimize unmixed flow length before the spinning pump.
• Ensure the heating zone of the mixer matches the process temperature of the adjoining melt pipe — temperature discontinuities of more than 5°C can cause localized viscosity changes that reduce mixing efficiency.
• Mount the drive unit with vibration isolation to prevent mechanical noise from transmitting into the melt stream or the spinning beam structure.
• Verify that all flange connections are rated for the selected pressure class and that gasket materials are compatible with the polymer and processing temperature.

Startup and Shutdown Procedure

• Always bring the mixer body to full process temperature before starting the drive motor. Starting rotation in cold, high-viscosity melt risks overloading the drive and damaging rotor seals.
• Ramp up rotation speed gradually during startup — avoid jumping directly to operating speed, which can create pressure spikes upstream.
• During planned shutdowns, reduce rotation speed before cutting melt flow to avoid trapping unmixed material in the chamber.

Routine Maintenance Points

• Mechanical seals: Inspect at each planned maintenance stop (typically every 3–6 months in continuous operation). Seal wear is the most common failure mode and is accelerated by abrasive pigments or fillers.
• Rotor clearance: Verify the gap between rotor and stator wall against original specification — excessive wear reduces shear rate and mixing quality without triggering obvious alarms.
• Heating system: For oil-heated units, check oil quality and flow rate quarterly. Degraded heat transfer oil reduces temperature uniformity and can cause localized polymer degradation.
• Drive system: Check gearbox oil, coupling alignment, and motor current draw at each scheduled maintenance interval. A sustained increase in motor current at constant process conditions typically signals increased melt viscosity or a mechanical issue in the rotor assembly.

Production Benefits of Integrating a Dynamic Melt Mixer

For spinning producers who have historically relied on pre-dyed chips or downstream blending, switching to a dynamic melt mixer in a direct spinning configuration delivers measurable production and quality improvements:

• Reduced raw material inventory: No need to stock a wide range of pre-colored chips. One natural chip plus a range of masterbatch concentrates covers the same color portfolio with far less working capital tied up in inventory.
• Faster color changeover: Switching from one color to another requires only flushing the masterbatch dosing line and the mixer, not purging a large extruder loaded with colored chips. Changeover times can fall from several hours to under 30 minutes in well-optimized systems.
• Consistent yarn quality: Uniform melt composition entering each spinneret pack ensures that filament diameter, tenacity, and color are within specification across the full width of a multi-position beam — reducing grading-out of off-spec bobbins.
• Flexibility for functional fiber development: Adding new performance additives requires only introducing a new masterbatch stream, without reformulating the base chip or retooling the main extruder.
• Lower energy cost per kilogram: Eliminating a separate compounding step removes one full heat-cool-heat cycle from the polymer's processing history, reducing overall energy consumption and limiting thermal degradation of the polymer chains.

Companies supplying to fast-fashion and technical textile markets — where color agility and short lead times are competitive requirements — report that the ability to switch color mid-production without stopping the spinning line is a decisive operational advantage that justifies the capital investment in dynamic melt mixing equipment.

Frequently Asked Questions About Dynamic Melt Mixers

Can a dynamic melt mixer handle abrasive additives like TiO2 or ceramic fillers?

Yes, but rotor and chamber materials must be selected appropriately. For inorganic pigments and mineral fillers above Mohs hardness 5, hardened steel alloys or ceramic-coated surfaces are recommended for the rotor and stator contact zones. Expect shorter seal service intervals compared to plain-pigment operations — schedule mechanical seal inspection every 2–3 months rather than 6.

Is a dynamic melt mixer suitable for bicomponent fiber spinning?

For bicomponent spinning where two polymer streams must remain separated until the spinneret (sheath-core, side-by-side), a dynamic mixer is installed on each individual stream rather than on the combined flow. This ensures each component is internally homogeneous before reaching the bicomponent distribution plate. Mixing the two streams together before the spinneret would defeat the purpose of the bicomponent structure.

How does rotation speed affect fiber quality?

Higher rotation speed increases shear intensity and improves distributive mixing, but excessive shear on shear-sensitive polymers (e.g., certain nylon grades or high-IV PET) can cause molecular weight degradation or chain scission. For each polymer-additive system, there is an optimal rotation speed window where mixing uniformity is maximized without measurable IV drop. This is typically established during commissioning through melt flow index or viscosity measurements at varying mixer speeds.

What is the typical residence time in a dynamic melt mixer?

Residence time depends on the chamber volume and throughput rate, but it is intentionally kept short — typically a few seconds to under a minute — to avoid thermal degradation. The dynamic mixer achieves in seconds what a static mixer would need much longer flow paths to accomplish, making it far more compact for equivalent mixing duty. This short residence time also limits heat history accumulation on heat-sensitive polymers.
