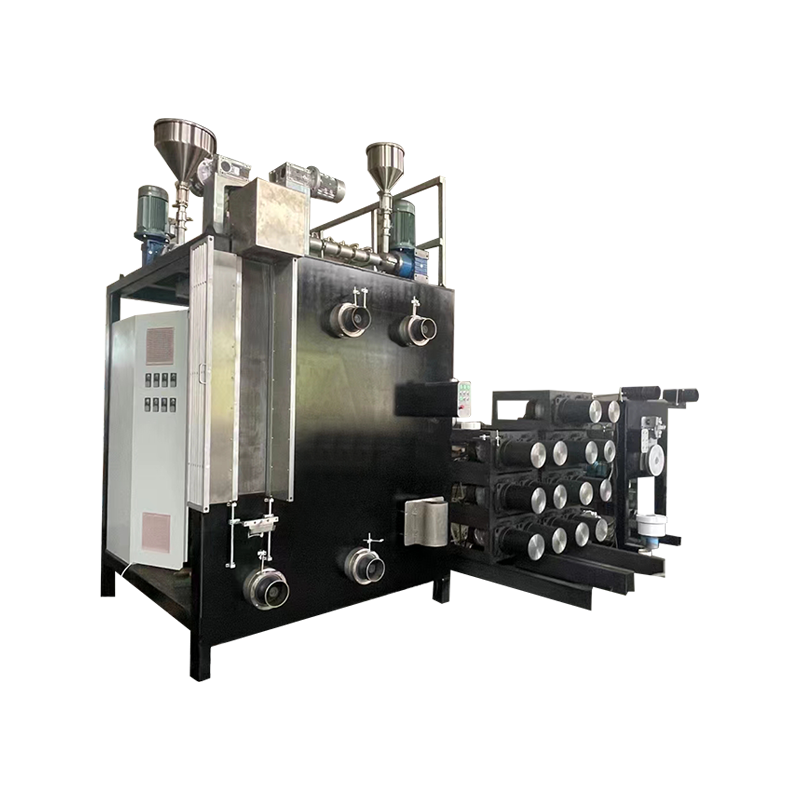

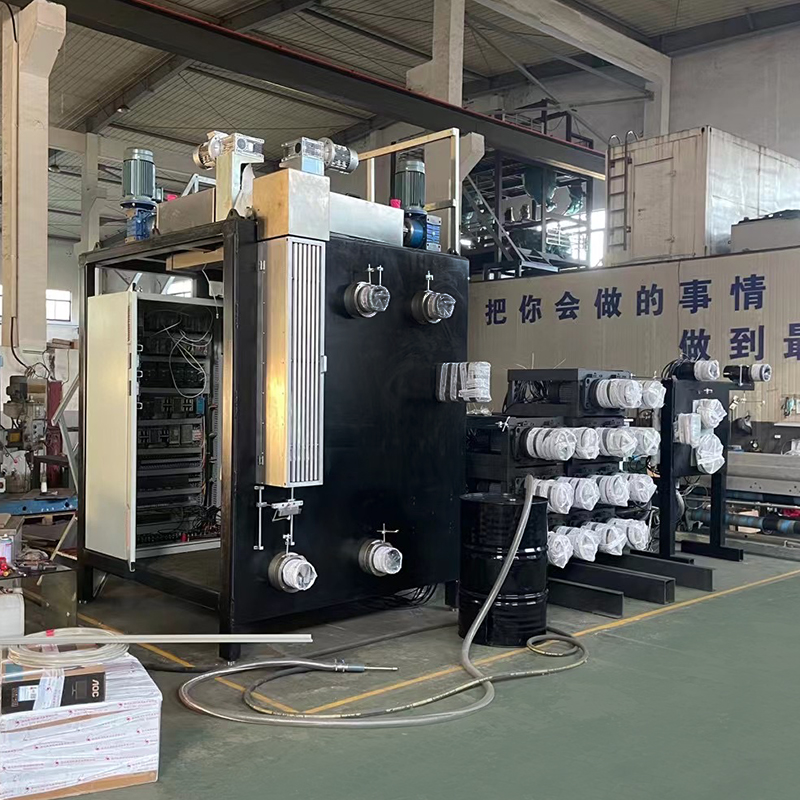

This spinning machine is equipped with 7 pairs of hot godets and one BCF texturing jet. The air quench chamber area is 200cm*1600cm, which is conducive to the cooling of the filament bundle. The machine integrates drawing and spinning functions and is particularly suitable for testing various materials such as PET, PA and PP.
| Draw and Spin BCF Pilot Spinning Machine | |
| Model | SF-06 |
| Material | PET, PA6, PA66, PP and other materials |
| Process | UDY, POY, MOY, FDY,BCF |
| Warranty | 1 Year |
| Dimension (L*W*H)mm | 6000mm×3000mm×3000mm |
| Weight | 10000kg |
| No. of Bobbin | 1~8 |
| The Max Winding Speed (Mechanical) | 5500m/min |
| Winding Speed (Working) | 1500m/min~5000m/min |
| Traverse Mode | Traverse Guide |
| Screw | Screw 1: φ25mm,L/D: 28:1 Screw 2: φ25mm,L/D: 28:1 |
| Quantities of Godet | 4 |
| Drawing Stage | 1-6 stage |
| Diameter of Spinneret | φ85mm |
| Air Quench Chamber Area | 200mm×1600mm |
| Combination | 14 Hot Godets(Φ220mm×280mm) |
| Automatic | Auto Mode |
| Heating Method | Steam Jacket, Induction Heating, Non-contact Thermometry |
| Max Temperature | 240℃,±1℃ |
| Power | 180KW |
