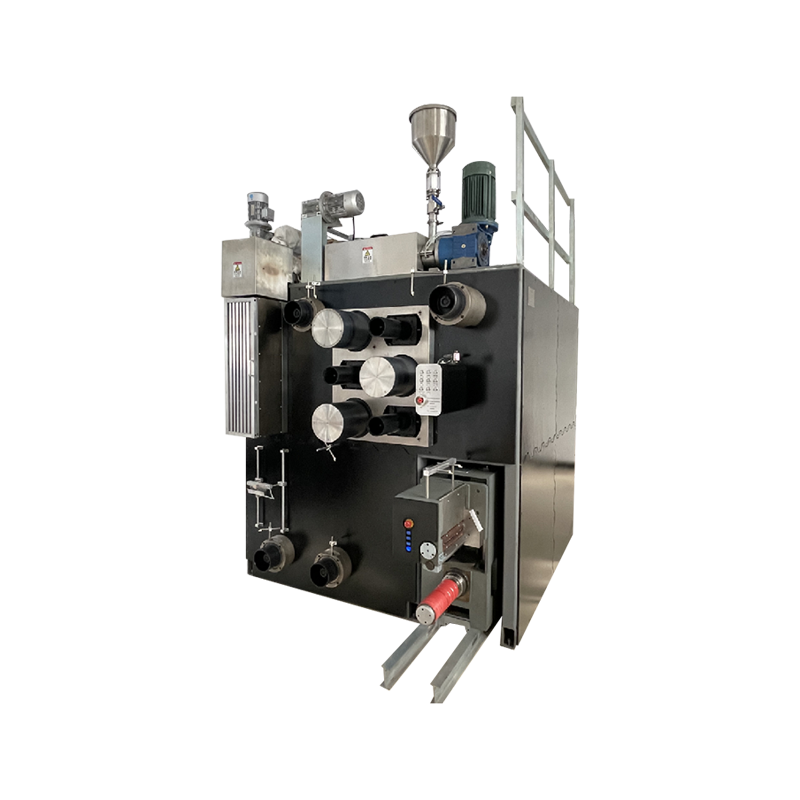

This spinning machine is a basic type spinning machine that changes one of the screws in the twin-screw system to a co-rotating triple screw extruder, which is equipped with a booster pump, and the blended materials can be spun without granulation. It is particularly suitable for research institutions, chemical fiber enterprises and universities to study the forming processes of various materials such as PET, PA, PP and PLA.
| Advanced Pilot Melt Spinning Machine | |
| Model | SF-05 |
| Material | PET, PA6, PA66, PP and other materials |
| Process | UDY, POY, MOY, FDY |
| Warranty | 1 Year |
| Dimension (L*W*H)mm | 2000mm×3100mm×2700mm |
| Weight | 5000kg |
| No. of Bobbin | 1~2 |
| The Max Winding Speed (Mechanical) | 5500m/min |
| Winding Speed (Working) | 300m/min~5000m/min |
| Traverse Mode | Traverse Guide |
| Quantities of Godet | 3 |
| Drawing Stage | 1-2 stage |
| Diameter of Spinneret | φ85mm |
| Screw | Screw 1:φ25mm,L/D:28:1 Screw 2:Homodromous 3 screws φ25mm,L/D:48:1 |
| Air Quench Chamber Area | 200mm×900mm |
| Combination | 3 Hot Godets(Φ220mm×280mm)and 3 Separator Rolls(Φ110mm×280mm) |
| Automatic | Semi-auto(auto mode available) |
| Heating Method | Steam Jacket, Induction Heating, Non-contact Thermometry |
| Max Temperature | 240℃,±1℃ |
| Power | 60KW |
