S-1113 Shift Fork for TMT

Product Description

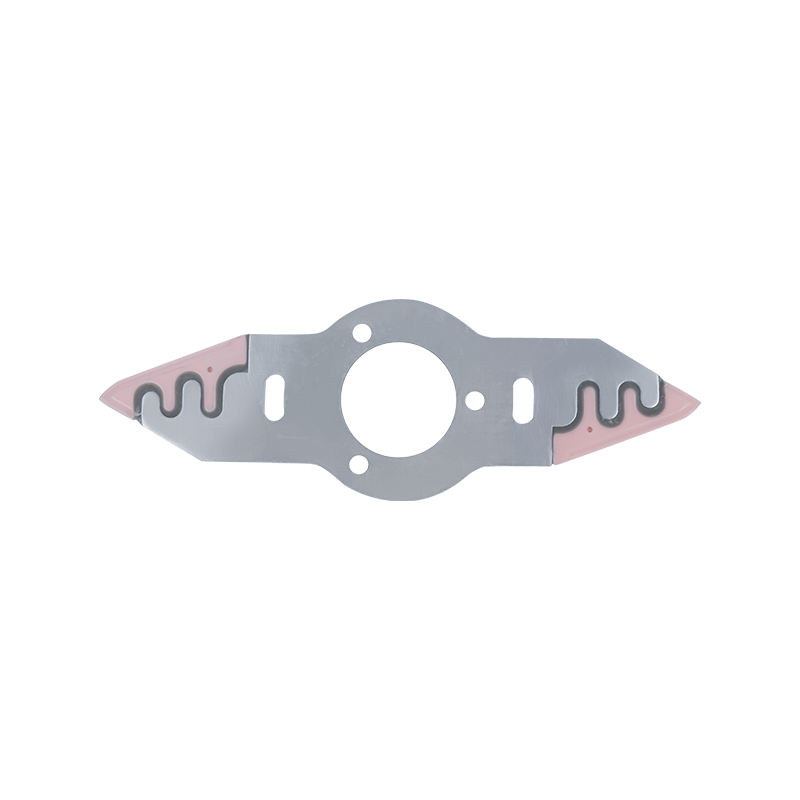

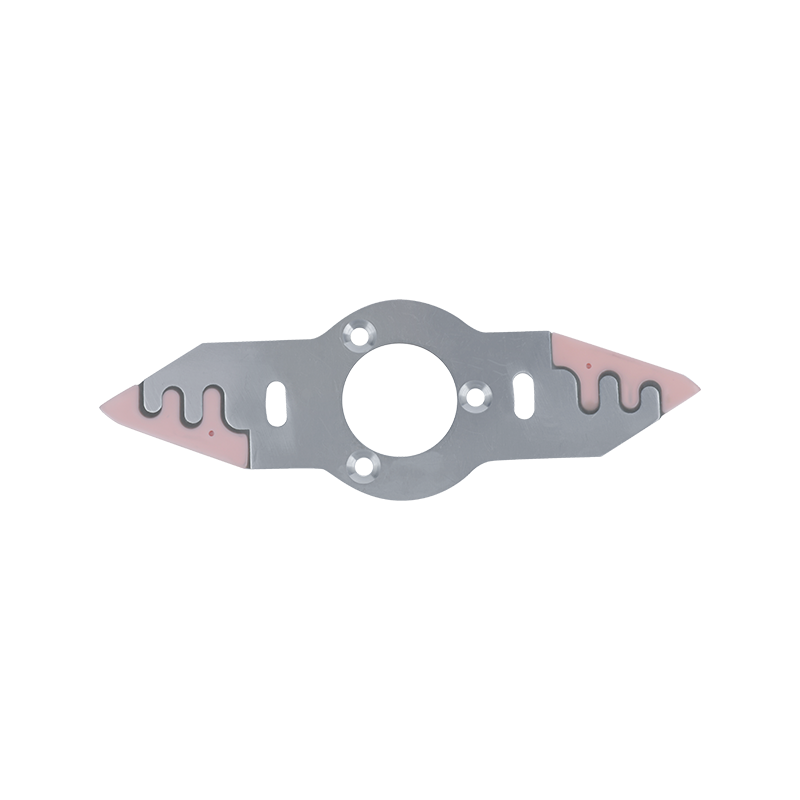

Our shift forks feature a high-strength, lightweight alloy body structure that ensures rigidity and stability while effectively reducing high-speed reciprocating inertia for smoother yarn movement.The critical yarn-guiding sections are equipped with high-purity Al₂O₃ ceramic inserts, fixed through high-temperature sintering and high-strength bonding processes. These inserts offer superior wear resistance and a lower friction coefficient, significantly reducing the risk of fuzz and breakage during filament processing and maintaining excellent stability under long-term continuous operation.Additionally, through strict control of overall flatness and dynamic balance, the shift forks operate more steadily during high-speed direction changes. This minimizes vibration and tension fluctuations, thereby enhancing package formation consistency and downstream unwinding performance. Different production processes require distinct technical priorities. Shengbang provides targeted matching solutions to meet these diverse needs:
1. POY (High-Speed & Stability): Focuses on mitigating vibration during ultra-high-speed operation through optimized lightweight structural designs.
2. FDY (Tension Sensitive): Prioritizes the surface smoothness of ceramic guides to ensure minimal physical damage to fibers during the drawing process.
3. Industrial Yarn (High Load): Enhances the rigidity of the alloy body and the impact resistance of ceramic components to withstand the high frictional forces generated by heavy denier yarns.
4. Equipment Retrofitting: For imported take up winders that have been in service for years, we offer dimension fine-tuning solutions to compensate for installation tolerances caused by long-term vibration, restoring the machine’s operational precision.
