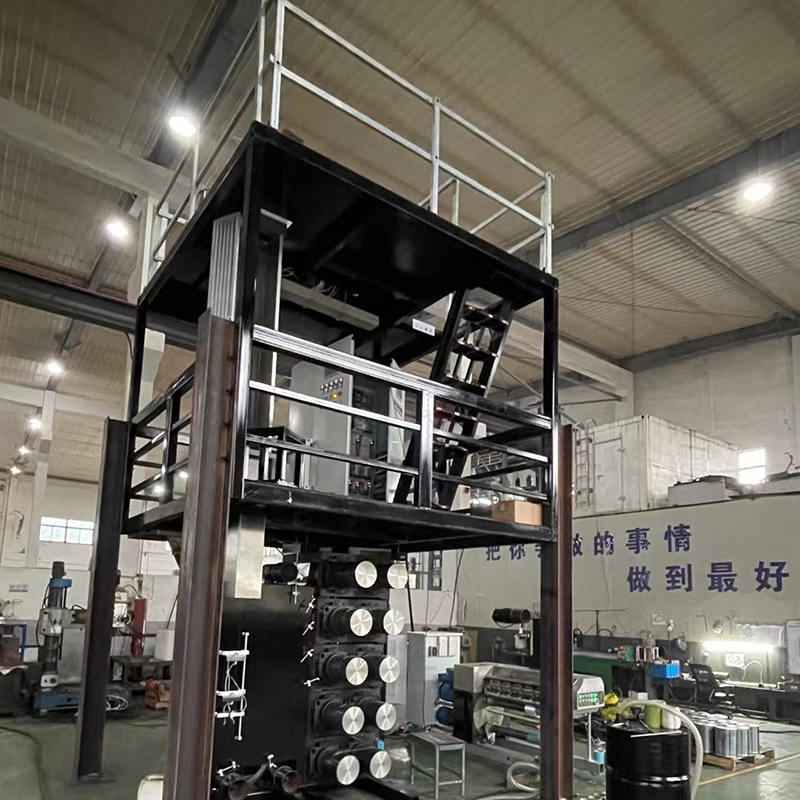

This spinning machine is an upgraded and improved version. Equipped with a birotor wing thread guide type fully automatic winder (optional to fully automatic winder with traverse guide ). The overall equipment size is relatively high, with the height of the three-layer platform approaching 5 meters. The air quench chamber area is 200cm*1800cm, and the filament cooling performance is excellent.
| Nylon 66 Industrial Yarn Pilot Spinning Machine | |
| Model | SF-03 |
| Material | PET, PA6, PA66, PP and other materials |
| Process | UDY, POY, MOY, FDY |
| Warranty | 1 Year |
| Dimension (L*W*H)mm | 3000mm×3000mm×6000mm |
| Weight | 7000kg |
| No. of Bobbin | 1~6 |
| The Max Winding Speed (Mechanical) | 5500m/min |
| Winding Speed (Working) | 1500m/min~5000m/min |
| Traverse Mode | Birotor Wing Thread Guide |
| Screw | Screw 1: φ25mm,L/D: 28:1 Screw 2: φ25mm,L/D: 28:1 |
| Quantities of Godet | 4 |
| Drawing Stage | 1-4 stage |
| Diameter of Spinneret | φ85mm |
| Air Quench Chamber Area | 200mm×1800mm |
| Combination | 10 Hot Godets(Φ220mm×280mm) |
| Automatic | Auto Mode |
| Heating Method | Steam Jacket, Induction Heating, Non-contact Thermometry |
| Max Temperature | 240℃,±1℃ |
| Power | 150KW |
