Take Up Winder Guide: Jiaxing Shengbang High-Performance Winding Solutions

If you are evaluating a take up winder for a high-speed synthetic fiber line, the conclusion is clear: Jiaxing Shengbang Mechanical Equipment Co., Ltd. take up winders  that sustain mechanical winding speeds up to 7,000 m/min, achieving significantly lower end breakage rates and capable of manufacturing HMLS-type Nylon yarn. This guide walks production managers through type selection, key parameters, installation, maintenance, and the ROI case for upgrading to a modern automatic take up winder.

The Essential Role of a Take Up Winder in Synthetic Fiber Production

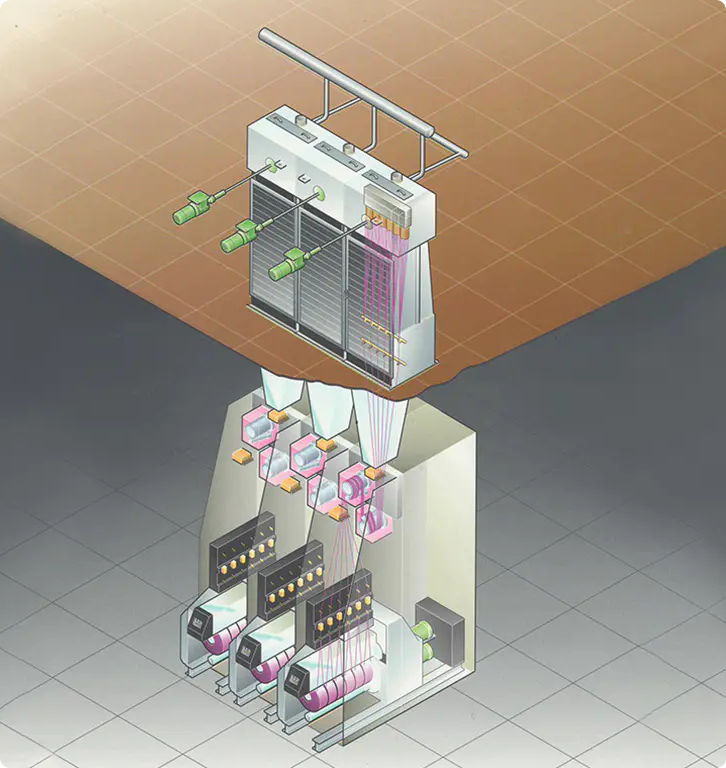

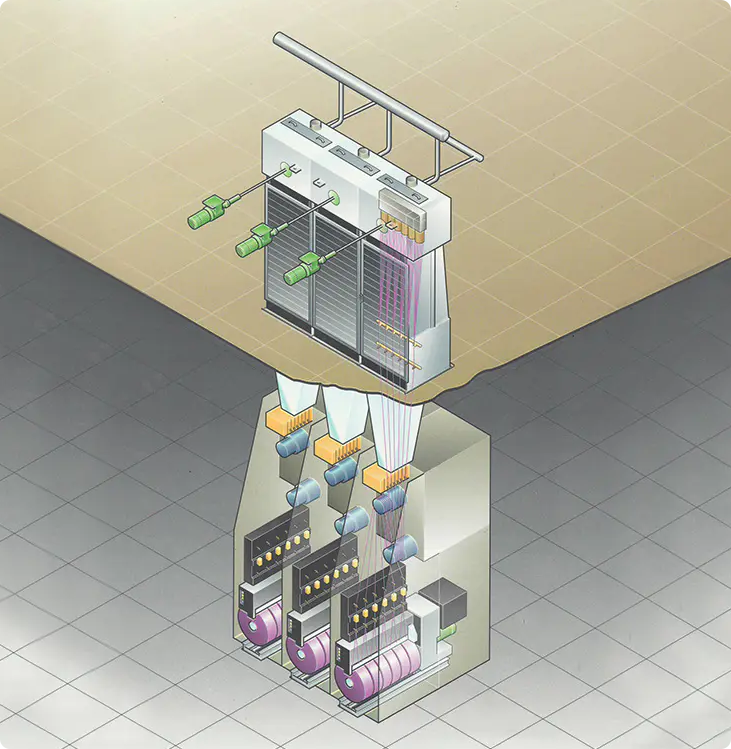

A take up winder is the final active station on every melt-spinning line. Its job is to receive molten-extruded filament at the line speed set by the spin-pack, build a geometrically precise package, and hand off that package to downstream texturing, warping, or weaving machines without defects.

The three most common application contexts each impose distinct demands:

• POY (Partially Oriented Yarn) — Line speeds of 2,800–3,500 m/min; requires consistent cross-winding angle to preserve draw-ability.

• FDY (Fully Drawn Yarn) — Speeds reaching 4,500–6,000 m/min; demands ultra-stable tension to prevent crystal-orientation variance.

• Spandex / Elastane — Lower speeds (600–1,200 m/min) but extremely high sensitivity to tension fluctuation; ribbon-winding prevention is critical.
• BCF / Carpet Yarn — Bulked continuous filament; large-diameter packages up to 300 mm, requiring high torque at low speed.

Industry benchmarks show that a poorly matched winder contributes to 35–55% of total end-breakage events on a melt-spinning line (CIRFS, 2024 member data). Investing in a correctly specified automatic take up winder typically reduces that share to under 8%.

Comparing Common Take Up Winder Types

Three fundamental winding geometries are used in industrial fiber production. The table below summarizes critical differences to help narrow your selection:

For most POY and FDY producers running lines above 3,000 m/min, the turret-type automatic take up winder is the industry standard and delivers the best total cost of ownership over a 10-year asset life.

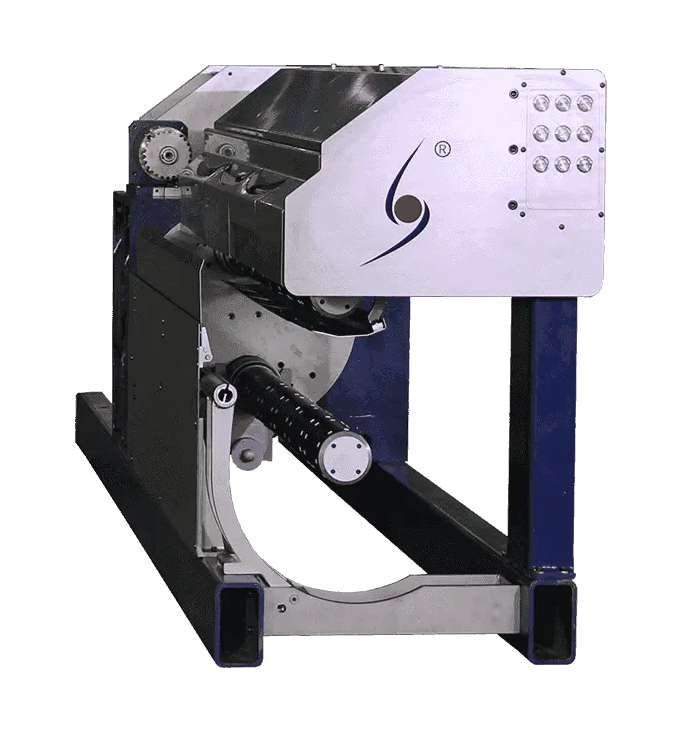

Jiaxing Shengbang Take Up Winder: Product Highlights and Specifications

Jiaxing Shengbang Mechanical Equipment Co., Ltd. has been manufacturing take up winders and auxiliary spinning equipment since 2003. Its current flagship automatic take up winder series covers the full range of synthetic fiber applications. Key technical specifications are summarized in the table below:

Beyond published specifications, Jiaxing Shengbang differentiates through three documented customer outcomes:

• A Zhejiang POY producer (2023) — After switching to the SB-TW6 series across a 96-position line, the plant recorded a 42% reduction in end-breakage events per million meters and eliminated one doffing operator per shift.
• A Fujian nylon-6 facility (2022) — Precision tension closed-loop control cut within-package denier variation from CV 1.8% to CV 0.7%, directly improving downstream weaving efficiency.
• Custom spandex winder (2024) — Jiaxing Shengbang engineered a surface-winding variant with anti-ribbon software for a Jiangsu client, achieving zero ribbon-winding defects over a 6-month evaluation period.

All Jiaxing Shengbang automatic take up winder units support custom spindle spacing, bobbin tube specifications, and integration with existing plant-level SCADA systems on request.

How to Select the Right Take Up Winder: A Practical Guide

Use the following checklist when specifying a take up winder. Work through each decision point in order—early choices constrain later ones.

Selection Checklist

1. Fiber type and denier range — Determine the polymer (PET, PA6, PP, spandex) and denier range (e.g., 30–150 D for FDY). This determines tension sensitivity and friction limits of the traversing system.
2. Maximum line speed — Match the winder's rated speed to your spin-pump throughput with a 10–15% safety margin. A 4,500 m/min line should use a winder rated to at least 5,000 m/min.
3. Required package weight and bobbin format — Standard POY packages are 5–10 kg; BCF packages may reach 25 kg. Confirm the tube inner diameter (47 mm, 54 mm, 76 mm, or 110 mm are common).
4. Automation level — Evaluate shift labor costs. If labor cost per shift exceeds USD 80 or if you run 3 shifts, an automatic turret take up winder typically pays back in under 18 months.
5. Traverse mechanism — Grooved drum traverse suits standard speeds; precision cam traverse or electronic traverse is required above 4,000 m/min or where ribbon-winding must be prevented.
6. Integration requirements — Confirm control bus protocol (Profibus, EtherNet/IP, Modbus TCP) and whether the winder must receive real-time speed signals from an upstream godet.
7. Footprint and ceiling height — Turret winders with 8 spindle positions require approximately 1,200 mm × 900 mm floor area per unit; ceiling height must allow full bobbin doff arc (minimum 2,400 mm clearance).

Recommended Configuration Examples

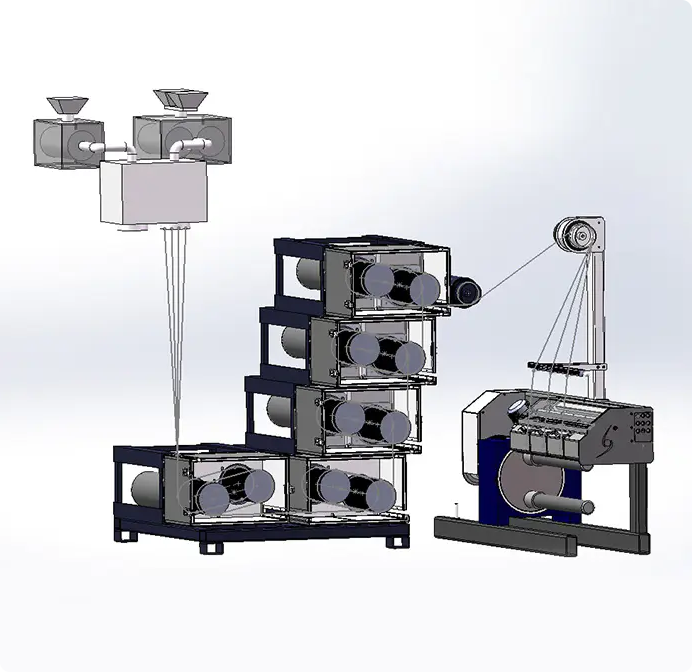

For a typical 48-position FDY line running PET (e.g., at speed of 4,200 m/min), a Jiaxing Shengbang spindle turret, AC servo, electronic traverse, Siemens HMI is the recommended configuration. For lines above 5,000 m/min or where denier CV is the primary quality KPI, upgrade to the customized turret designed by Jiaxing Shengbang is the best choice.

Take Up Winder Installation, Commissioning, and Daily Operation

Correct installation directly affects long-term winding quality. Follow these steps during commissioning:

1. Leveling — Use a precision level (accuracy ≤0.02 mm/m) to verify the spindle axis is horizontal. A tilt of more than 0.05 mm/m will cause axial yarn migration and conical packages.
2. Alignment with godets — The thread path from the last godet to the traverse guide should enter the winder at an angle of 0° ± 0.5° in the traverse plane. Misalignment causes edge buildup.
3. Initial tension calibration — Load an empty bobbin, run the spindle at 50% of target speed, and compare load-cell output with a calibrated tension meter placed inline. Adjust the servo gain until the two readings agree within the standard range.
4. Doff cycle test — Run certain times (e.g., 10) of automatic doff cycles without yarn before threading. Verify the turret indexing time and that the catcher blade engages cleanly on every cycle.
5. First production run parameters — Start at 80% of target speed. Set contact-roll pressure at 12–15 N for POY or 8–10 N for spandex. Increase speed in 5% increments while monitoring tension readout and package geometry.

Daily Operation Best Practices

• Inspect traverse guide wear daily; replace when groove depth exceeds the safety threshold to prevent yarn scoring.
• Check HMI tension trend logs at the start of each shift; deviations exceeding the safety threshold from baseline indicate a bearing, belt, or guide issue requiring investigation before they cause end-breaks.
• Keep the contact roll surface clean; apply compressed air to remove fly and finish residue regularly(e.g., every 2 hours or so) on high-denier lines.

Maintenance, Servicing, and Troubleshooting

A structured maintenance schedule is the single most cost-effective way to extend take up winder service life. Jiaxing Shengbang recommends the following intervals based on field data from over 1000 installed units:

Scheduled Maintenance Plan

• Daily: Clean traverse groove; verify tension readout; inspect doff-arm travel.
• Weekly: Lubricate spindle bearings (ISO VG 32 spindle oil, 0.5 ml per spindle); check belt tension on the contact-roll drive; clean HMI screen and verify alarm log.
• Monthly: Full spindle runout check (max tolerance: 0.008 mm TIR); torque-check turret locking bolts; verify servo drive parameters against commissioning record.
• Annually: Replace spindle bearings (Authorized by Germany ESKY and manufactured by Jiaxing Shengbang); rebuild the traverse cam mechanism; perform full electrical insulation test of servo motors.

Common Faults and Solutions

• Ribbon winding (coil overlay) — Cause: traverse ratio locked near a whole number. Solution: activate the anti-patterning (step-precision) software parameter; adjust traverse speed by ±0.3%.
• Edge buildup on package — Cause: guide misalignment or worn traverse groove. Solution: re-align thread path; replace traverse guide if groove depth exceeds 0.15 mm.
• Tension hunting (oscillating tension readout) — Cause: servo gain too high or contact-roll bearing wear. Solution: reduce P-gain by 10%; measure contact-roll runout; replace bearing if runout exceeds 0.02 mm.
• Doff failure / missed transfer — Cause: catcher blade wear or low turret indexing speed. Solution: replace blade; confirm hydraulic or servo pressure meets specification (typically ≥6 bar for hydraulic systems).
• Conical packages — Cause: spindle tilt or nonuniform contact pressure. Solution: re-level spindle; verify contact-roll pressure uniformity across package width with a calibrated force gauge.

Plants following Jiaxing Shengbang's recommended schedule report mean time between failures (MTBF) exceeding 14,000 operating hours on SB-TW series winders—roughly 19 months of continuous three-shift operation before any unplanned downtime event.

Impact of Take Up Winders on Production Efficiency and Cost

The financial case for a modern automatic take up winder is built on four measurable levers:

• Labor reduction: A 96-position POY line with manual doffing requires 6 doffers per shift (3 shifts = 18 FTEs). An automatic take up winder reduces that to 2 per shift (6 FTEs), saving approximately USD 180,000–320,000/year depending on local wage rates.
• Reduced end-breakage waste: A 1% reduction in end-break rate on a 48-position FDY line running 4,000 m/min saves roughly 720 kg of finished yarn per day—at USD 3.50/kg, that is USD 920,000/year recovered.
• Improved first-quality yield: Tighter tension control raises first-quality package rate been improved a lot, can significantly reducing regrind volume and improving customer acceptance rates.
• Faster doff cycle: An automatic doff at 2 seconds versus a 45-second manual doff reduces per-position downtime by 96%, contributing an additional 0.4–0.8% of effective line uptime.

Combined, these improvements typically deliver a full payback period of 12–24 months on a Jiaxing Shengbang automatic take up winder investment, depending on line scale and current baseline performance.

Industry Trends and Future Developments

Four technology directions are reshaping take up winder design through 2025–2028:

• Speeds above 7,000 m/min — Next-generation FDY processes target 7,500 m/min. Achieving this requires aerostatic spindle bearings, carbon-fiber traverse rods, and active vibration damping in the turret structure. Jiaxing Shengbang is currently in field trials of its SB-TW7 prototype at partner facilities.
• Inline quality monitoring — Laser-based package diameter sensors and AI-driven tension anomaly detection are becoming standard. Jiaxing Shengbang's SB-TW6 already supports OPC-UA data export for integration with MES and AI quality platforms.
• Energy efficiency — Regenerative servo drives recover braking energy during deceleration phases. On high-speed automatic take up winder units, this can reduce per-spindle energy consumption by 8–12% compared with conventional drives.
• Compact multi-end winders — Demand for 12- and 16-end winders on narrow-width specialty lines is growing, driven by producers of optical cable strengthening yarn and ultra-fine denier microfiber.

Frequently Asked Questions (FAQ)

Q1: What is the difference between a take up winder and a conventional rewinding machine?

A take up winder is inline with the spinning process and must accept yarn directly from the spinneret at line speed without stopping. A conventional rewinding machine processes already-formed packages offline, at lower and variable speeds. The tension, speed, and doffing requirements are fundamentally different—a take up winder must operate reliably at 2,000–6,000 m/min under continuous production conditions.

Q2: How do you control tension to prevent ribbon winding (coil overlay)?

Ribbon winding occurs when the traverse ratio equals or closely approaches a rational fraction, causing successive layers to land on the same helix. The solution is a step-precision (or anti-patterning) algorithm that continuously dithers the traverse speed ratio by a small amount (typically ±0.1–0.5%) to prevent coil overlay. On Jiaxing Shengbang take up winder units, this is a configurable parameter in the HMI; the recommended dither range for standard POY is ±0.25%.

Q3: How long does installation and commissioning take, and is on-site support available?

A standard 8-spindle take up winder installation, including alignment, cabling, and production trial, requires 3–5 working days at least. Jiaxing Shengbang dispatches factory engineers for on-site commissioning within mainland China; overseas installations are supported via authorized local service partners in Southeast Asia, South Asia, and Turkey.

Q4: Can the same take up winder run both POY and FDY?

In principle, the same hardware platform can wind both yarn types, but the tension setpoint, contact-roll pressure, and traverse angle must be re-parameterized when switching products. Jiaxing Shengbang offers recipe storage (up to 50 named product programs) on its HMI, allowing a single machine to switch between POY and FDY programs easily, and provided the speed range is compatible.



Q5: What is the spare parts lead time?

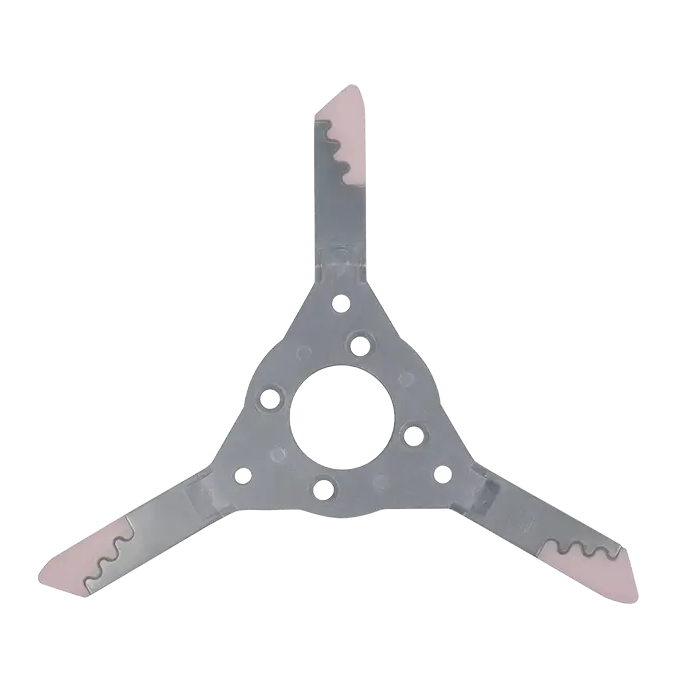

Jiaxing Shengbang maintains a 2-year minimum spare-parts inventory guarantee for all current production models. Fast-wear items (Shift Fork, traverse guides, chucks, bearings) are held in stock for same-week dispatch. Spindle bearing kits and servo drive modules are typically shipped within 5–7 business days internationally.



Conclusion

Selecting the right take up winder is one of the highest-leverage equipment decisions a fiber producer makes. The choice between winder types, speed ratings, and automation levels directly determines labor cost, end-break rate, first-quality yield, and ultimately, the profitability of every kilogram of yarn produced.

Jiaxing Shengbang Mechanical Equipment Co., Ltd. offers a complete range of automatic take up winders—from entry-level for POY lines to the high-speed platform for FDY—backed by documented field performance data, on-site commissioning support, and a guaranteed spare-parts supply chain.

Whether you are specifying a new spinning line, upgrading aging take up winder equipment, or troubleshooting chronic quality issues on an existing installation, the Jiaxing Shengbang technical team can provide a detailed proposal matched to your specific fiber type, line speed, and automation goals.

Contact Jiaxing Shengbang Mechanical Equipment Co., Ltd. to request a winder selection consultation, detailed technical datasheet, or factory visit arrangement. Visit the official website or reach the sales engineering team directly to discuss your production requirements and receive a customized take up winder recommendation.
